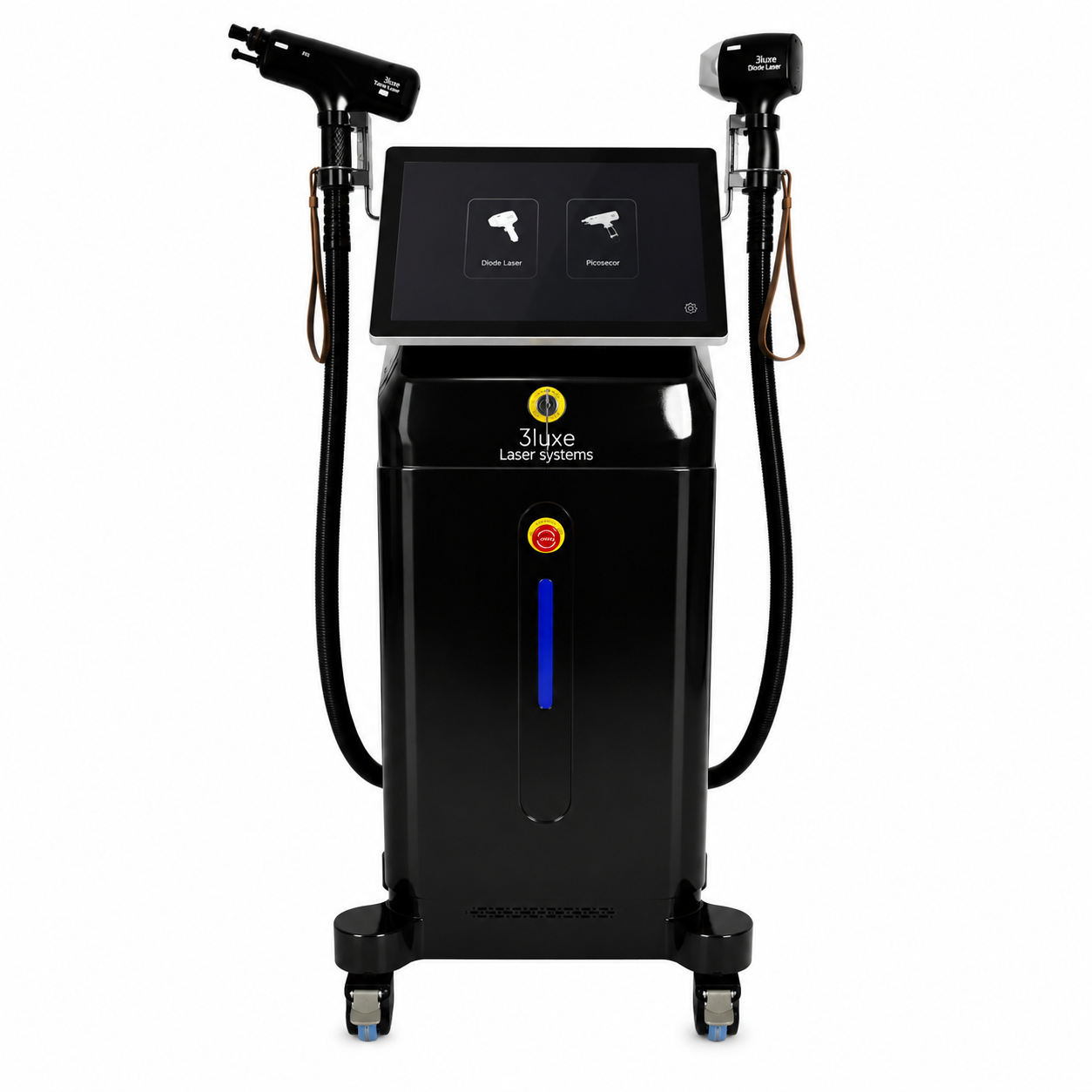

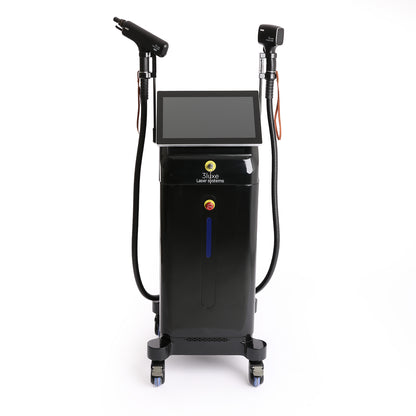

Diode Laser Hair Removal & Tattoo Removal Machine

Professional 4-Wavelength Diode Laser & Q-Switch Tattoo Removal System

Advanced Hair Removal & Tattoo Removal Platform

Designed for professional aesthetic clinics, salons and laser practitioners, this advanced 2-in-1 platform combines powerful 4-wavelength diode laser hair removal technology with Q-Switch tattoo and pigmentation treatment capabilities in a single professional-grade system.

Built with premium US Coherent laser bars, active TEC temperature management, external filtration, industrial-grade cooling architecture and replaceable diode stacks, this platform is engineered for reliable, high-performance operation in busy commercial environments.

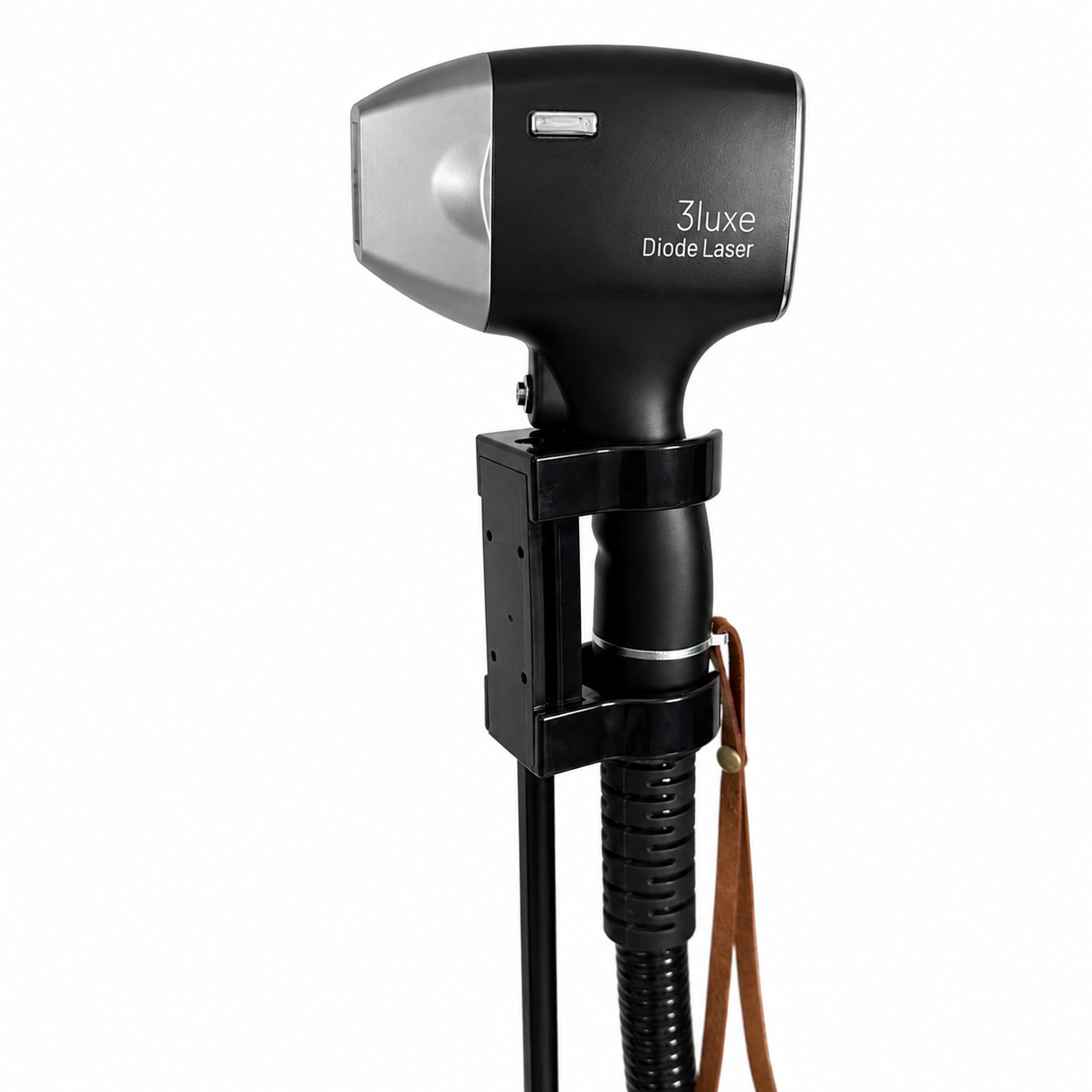

4-Wavelength Diode Hair Removal Technology

Featuring advanced mixed wavelength technology:

• 755nm
• 808nm
• 940nm
• 1064nm

This multi-wavelength approach enables effective treatment across a wide range of skin types and hair characteristics while maintaining excellent comfort and treatment efficiency.

Key Benefits

✓ Professional 12-Bar Diode Platform

✓ Genuine US Coherent Laser Bars

✓ 100W Per Bar Configuration

✓ Suitable for a wide range of skin and hair types

✓ High-performance Sapphire Contact Cooling

✓ Fast treatment speeds with up to 10Hz repetition rate

✓ Active TEC temperature management

✓ Replaceable diode stack design

✓ Flow sensor protection system

Advanced Cooling & Protection System

This platform incorporates a multi-stage cooling system designed for long-term reliability and consistent performance.

Cooling Architecture

• TEC Semiconductor Cooling
• Sapphire Crystal Contact Cooling
• Water Cooling System
• Air Cooling System
• DP-60 Industrial Diaphragm Pump
• Flow Monitoring & Protection Sensor

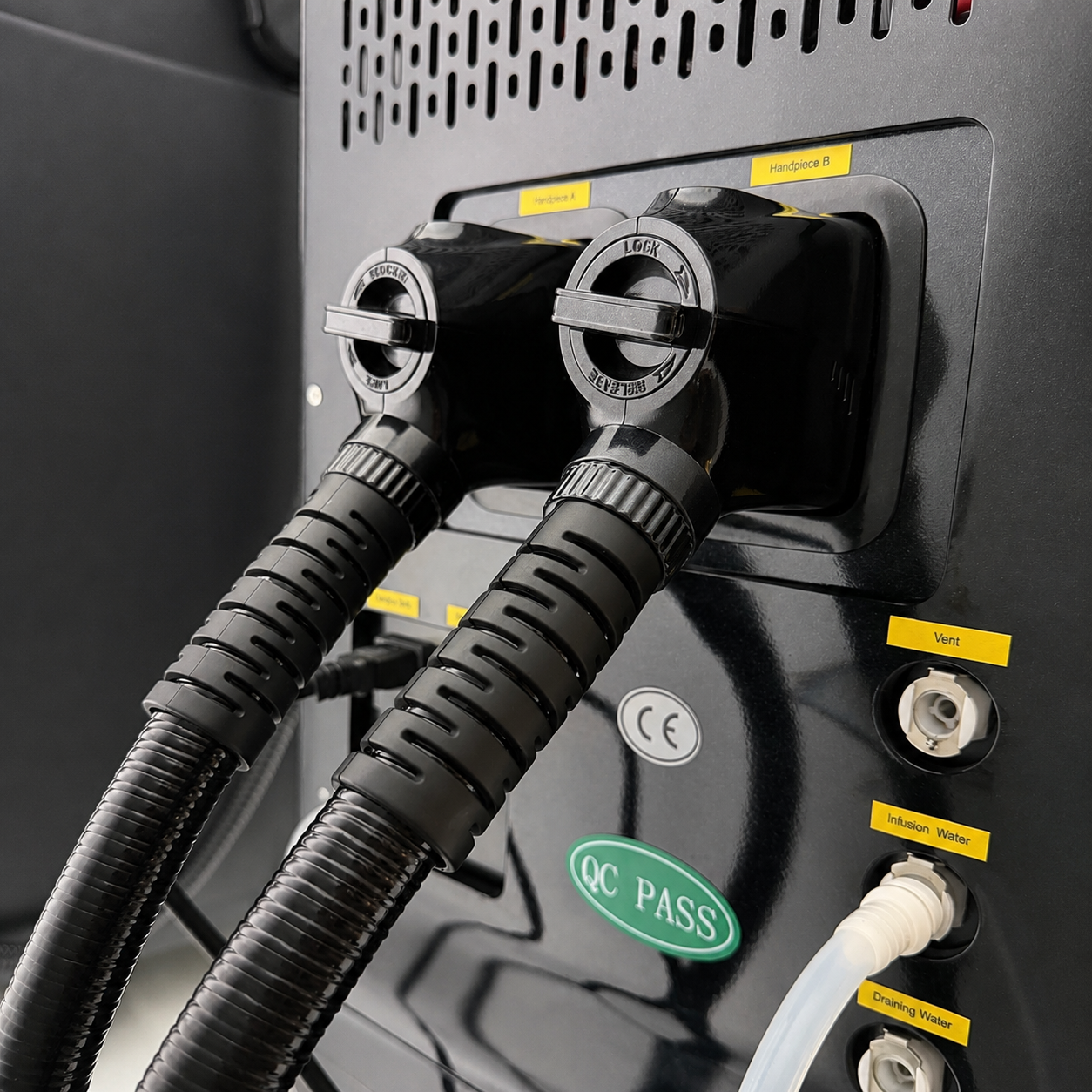

• External Water Filtration System
• Active Temperature Control

Why External Filtration Matters

Unlike many systems that utilise internal filters, the external filtration system allows easier maintenance, improved coolant cleanliness and simplified servicing. This helps maintain optimum coolant flow, cooling efficiency and long-term component protection.

Cooling System Specifications

• 4 Litre Water Tank
• DP-60 Industrial Diaphragm Pump
• Flow Detection Protection
• Active TEC Cooling
• Continuous Temperature Monitoring

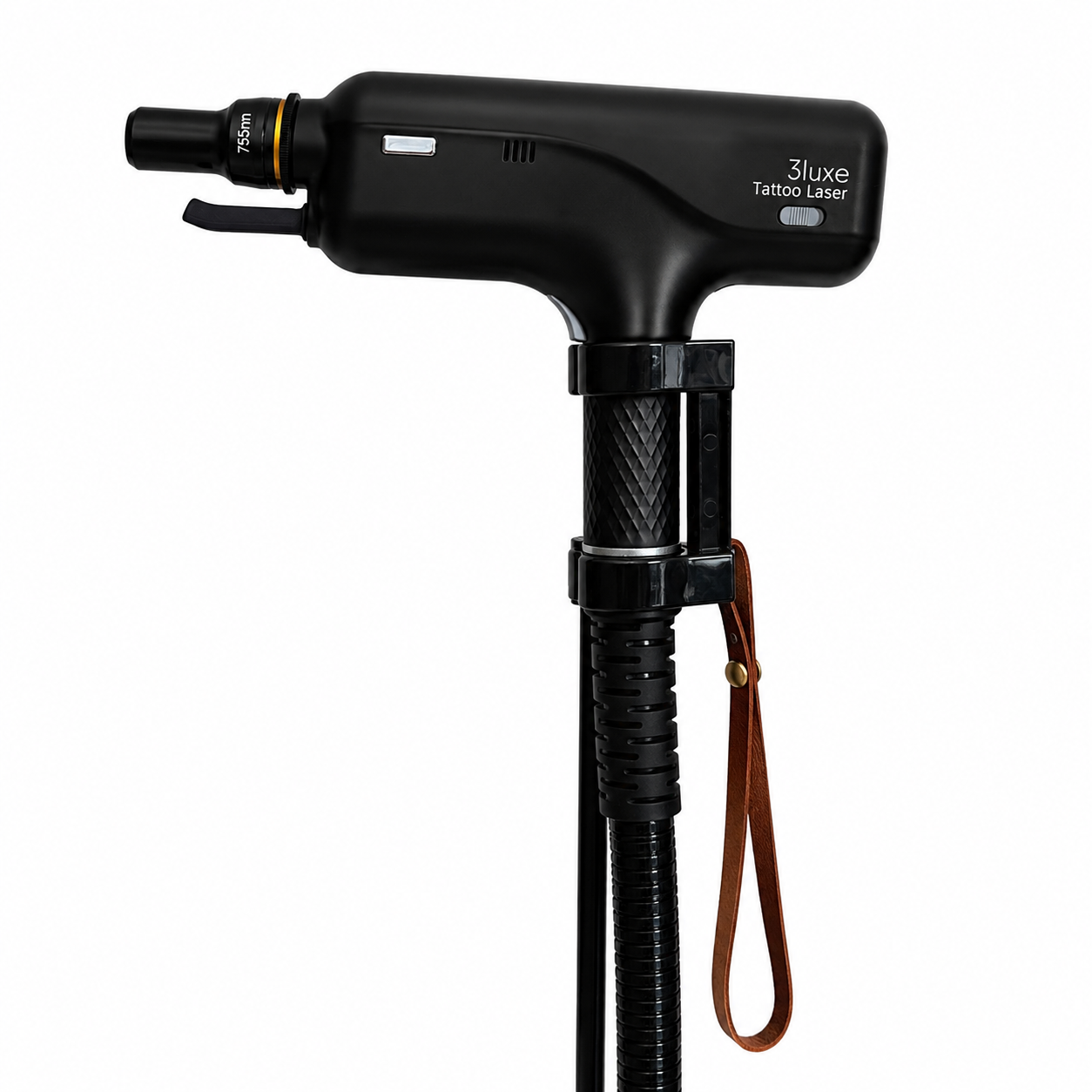

Q-Switch Tattoo & Pigmentation Removal System

Integrated Q-Switch technology provides treatment options for tattoo removal, pigmentation treatments and skin rejuvenation procedures.

Wavelengths

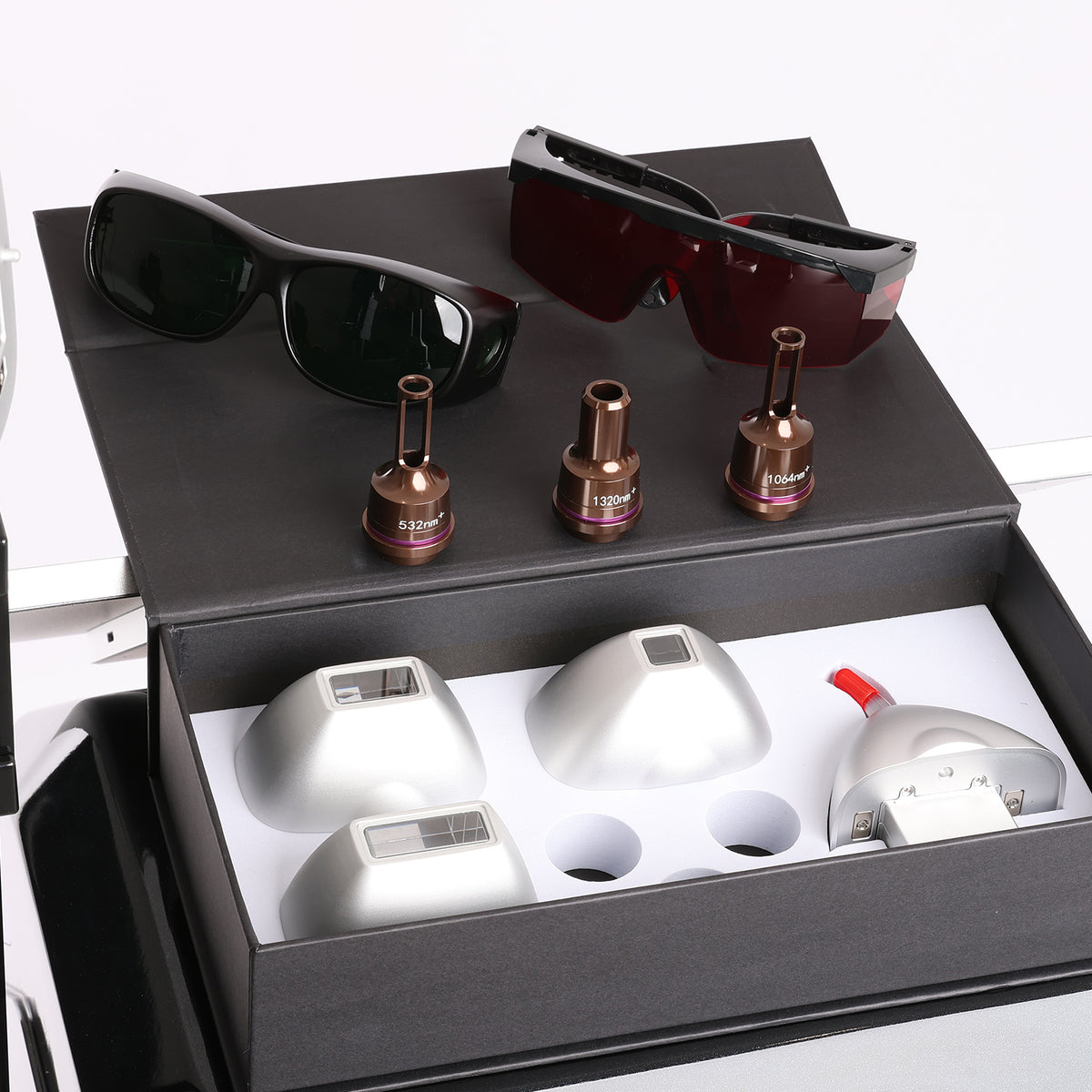

• 532nm
• 755nm
• 1064nm
• 1320nm Carbon Peel Mode

Treatment Applications

• Tattoo Removal
• Pigmented Lesions
• Freckles
• Sun Damage
• Carbon Facial Treatments
• Skin Rejuvenation Procedures

Q-Switch Specifications

• 1000W Platform
• Spot Size: 1–8mm
• Frequency: 1–10Hz
• Xenon Lamp Technology

Professional System Features

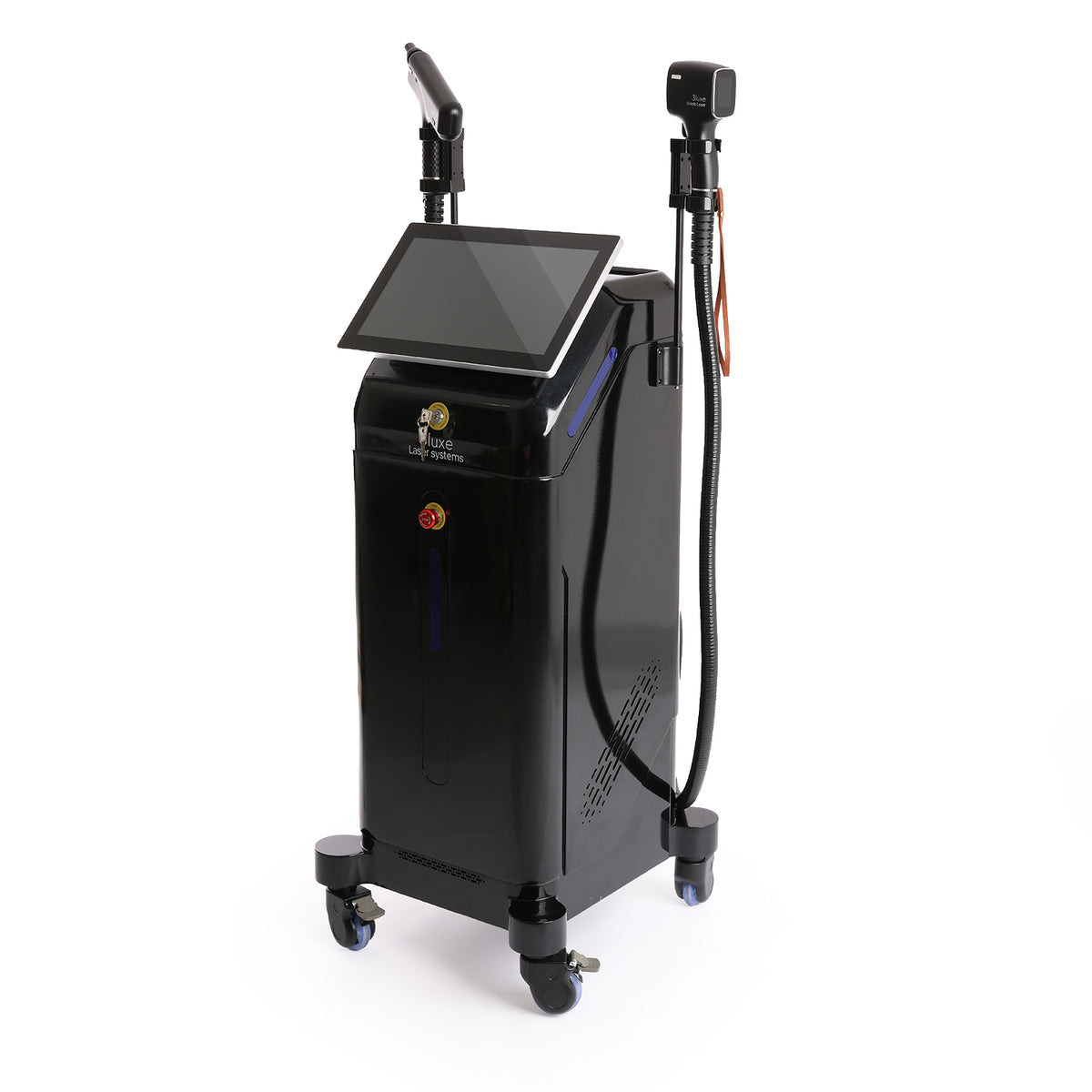

• 15.6” HD Touchscreen Interface
• Multi-Language Operating System
• Commercial Grade Construction
• Replaceable Diode Stacks
• External Serviceable Filter System
• Continuous Duty Design
• UK Technical Support

Technical Specifications

Diode Hair Removal

• Wavelengths: 755nm / 808nm / 940nm / 1064nm
• Frequency: Up to 10Hz
• Spot Sizes: 12×12mm, 12×24mm, 12×36mm
• Cooling: Sapphire + TEC + Water + Air
• Laser Bars: US Coherent
• Diode Configuration: 12 Bars
• Output: 100W Per Bar

Q-Switch Tattoo Removal

• Wavelengths: 532nm / 755nm / 1064nm / 1320nm
• Spot Size: 1–8mm
• Frequency: 1–10Hz

General

• Display: 15.6” Touchscreen
• Water Tank Capacity: 4 Litres
• Voltage: 110–220V
• Frequency: 50–60Hz
• Weight: 63kg

Warranty & Support

Every system includes:

✓ 1 Year UK Warranty

✓ UK-Based Technical Support

✓ Spare Parts Availability

✓ MHRA Registered Through Supplier

✓ Remote Technical Assistance

✓ Ongoing After-Sales Support

A professional clinic-grade laser platform combining advanced 4-wavelength diode hair removal technology with Q-Switch tattoo removal capability, engineered for reliability, performance and long-term serviceability.
