2-in-1 Diode Laser & Q-Switch Tattoo Removal Machine Guide
For aesthetic clinics, salons and laser practitioners looking to expand their treatment offering, purchasing separate machines for hair removal and tattoo removal can take up valuable space and increase equipment costs.
A professional 2-in-1 diode laser and Q-Switch tattoo removal machine combines two different laser technologies within one platform, allowing trained practitioners to offer professional laser hair removal alongside tattoo, pigmentation and carbon facial applications.
But what is the difference between diode and Q-Switch technology, and what should you look for when choosing a professional system?
What Is a 2-in-1 Diode & Q-Switch Laser Machine?
A 2-in-1 system combines two dedicated laser technologies:
Diode laser – primarily designed for professional laser hair removal.
Q-Switch laser – uses short, high-energy pulses and is commonly used for tattoo pigment, selected pigmentation applications and carbon facial treatments.
Although housed within the same machine, the two technologies perform different functions and use dedicated treatment handpieces.
For clinics offering multiple laser treatments, this can provide a practical alternative to purchasing and maintaining two completely separate machines.
How Does Diode Laser Hair Removal Work?
Diode laser hair removal works by delivering controlled laser energy towards melanin within the hair. The absorbed energy generates heat within the targeted area of the hair follicle.
Because hair grows through different stages, professional laser hair removal is normally performed as a course of treatments rather than a single session.
When comparing professional diode machines, it’s important to look beyond headline power figures. Laser bar quality, wavelengths, cooling, spot sizes, repetition rate and serviceability all contribute to the overall system.
Our professional platform uses a 12-bar configuration with 100W per laser bar and US Coherent laser bars, providing a 1200W standard diode configuration.
Understanding Diode Laser Wavelengths
Multi-wavelength diode systems combine different wavelengths to provide greater treatment flexibility.
Our diode system incorporates:
755nm – commonly incorporated for more superficial targeting and finer hair characteristics.
808nm – one of the most widely used wavelengths in professional diode hair removal.
940nm – provides an additional wavelength within the multi-wavelength platform.
1064nm – a longer wavelength with deeper penetration characteristics.
The system also operates at up to 10Hz and uses four interchangeable magnetic spot-size adapters:
Ø6mm, 12×12mm, 12×24mm and 12×36mm.
This allows practitioners to move between precision areas and larger body areas without relying on one fixed treatment size.
How Does Q-Switch Tattoo Removal Work?
Q-Switch technology works differently from diode hair removal.
It delivers high-energy, short-duration laser pulses designed to target selected pigment. When appropriate laser energy is absorbed by tattoo pigment, the pigment can be broken into progressively smaller particles that the body can gradually process.
Different wavelengths interact differently with different pigment colours.
The system includes 532nm and 1064nm wavelengths for tattoo and selected pigmentation applications, alongside 1320nm for carbon facial treatments.
Tattoo-removal outcomes can vary considerably depending on tattoo colour, pigment composition, depth, age and individual response, and multiple treatment sessions are commonly required.
Diode Laser vs Q-Switch Laser: What’s the Difference?
Although they’re combined within one platform, they shouldn’t be confused as the same technology.
|
Diode Laser |
Q-Switch Laser |
|
|---|---|---|
|
Main application |
Hair removal |
Tattoo & pigment applications |
|
Primary target |
Hair melanin/follicle |
Pigment |
|
Technology |
Diode laser bars |
Q-Switched laser |
|
Frequency |
Up to 10Hz |
1–10Hz |
|
Treatment head |
Sapphire contact handpiece |
Adjustable spot-size handpiece |
This is what makes a genuine 2-in-1 platform useful: practitioners have access to two dedicated technologies within one professional system.
Why Cooling Matters in a Professional Diode Laser
Cooling is one of the areas worth investigating carefully when comparing diode laser machines.
Professional diode systems generate heat during operation, making effective thermal management important for maintaining stable operating conditions.
Our system combines TEC semiconductor cooling, sapphire contact cooling, water cooling and air cooling.
It also incorporates a DP-60 industrial diaphragm pump, 4-litre water tank, water-flow detection sensor and external serviceable water filter.
The external filter is particularly useful for long-term maintenance because it can be easily accessed for inspection and replacement rather than being hidden inside the machine.
What Should You Look for When Buying a Professional Laser Machine?
Don’t choose a professional laser machine based purely on the biggest wattage figure in an advert.
Consider the complete system, including:
- Quality and configuration of the laser bars
- Available wavelengths
- Treatment frequency and spot sizes
- Sapphire and TEC cooling
- Water circulation and flow protection
- Accessible filtration
- Replaceable components
- Warranty and spare-parts availability
- Technical and after-sales support
These details can become increasingly important once a machine is being used regularly in a commercial environment.
Why Choose a 2-in-1 System?
For the right business, combining diode and Q-Switch technologies can provide a more versatile treatment platform while reducing the need for multiple large machines.
A professional system can allow appropriately trained practitioners to provide laser hair removal, tattoo removal, selected pigmentation treatments and carbon facial applications from one platform.
For salons and aesthetic clinics looking to expand their treatment menu, this can make a 2-in-1 machine an attractive alternative to purchasing separate hair-removal and tattoo-removal systems.
Frequently Asked Questions
What is the difference between diode and Q-Switch laser?
Diode technology is primarily used for laser hair removal, while Q-Switch technology uses short, high-energy pulses for tattoo pigment and selected pigmentation applications. A 2-in-1 machine combines both technologies within one platform.
What does 10Hz mean on a laser machine?
Hz refers to frequency. A maximum frequency of 10Hz means the system can operate at up to ten pulses per second when appropriate treatment parameters are selected.
Why does a diode laser use multiple wavelengths?
Different wavelengths have different optical and penetration characteristics. A multi-wavelength system gives trained practitioners greater flexibility when selecting appropriate treatment parameters.
Why are different spot sizes useful?
Smaller spot sizes provide greater precision for smaller areas, while larger spot sizes provide greater coverage for larger body areas.
Is cooling important when choosing a diode laser?
Yes. Effective thermal management is an important part of professional diode laser operation. Contact cooling also helps manage heat at the skin surface during treatment.
Can the same laser handpiece remove hair and tattoos?
No. The combined platform uses separate diode and Q-Switch technologies and dedicated handpieces for their respective applications.
Want to Explore a Professional 2-in-1 System?

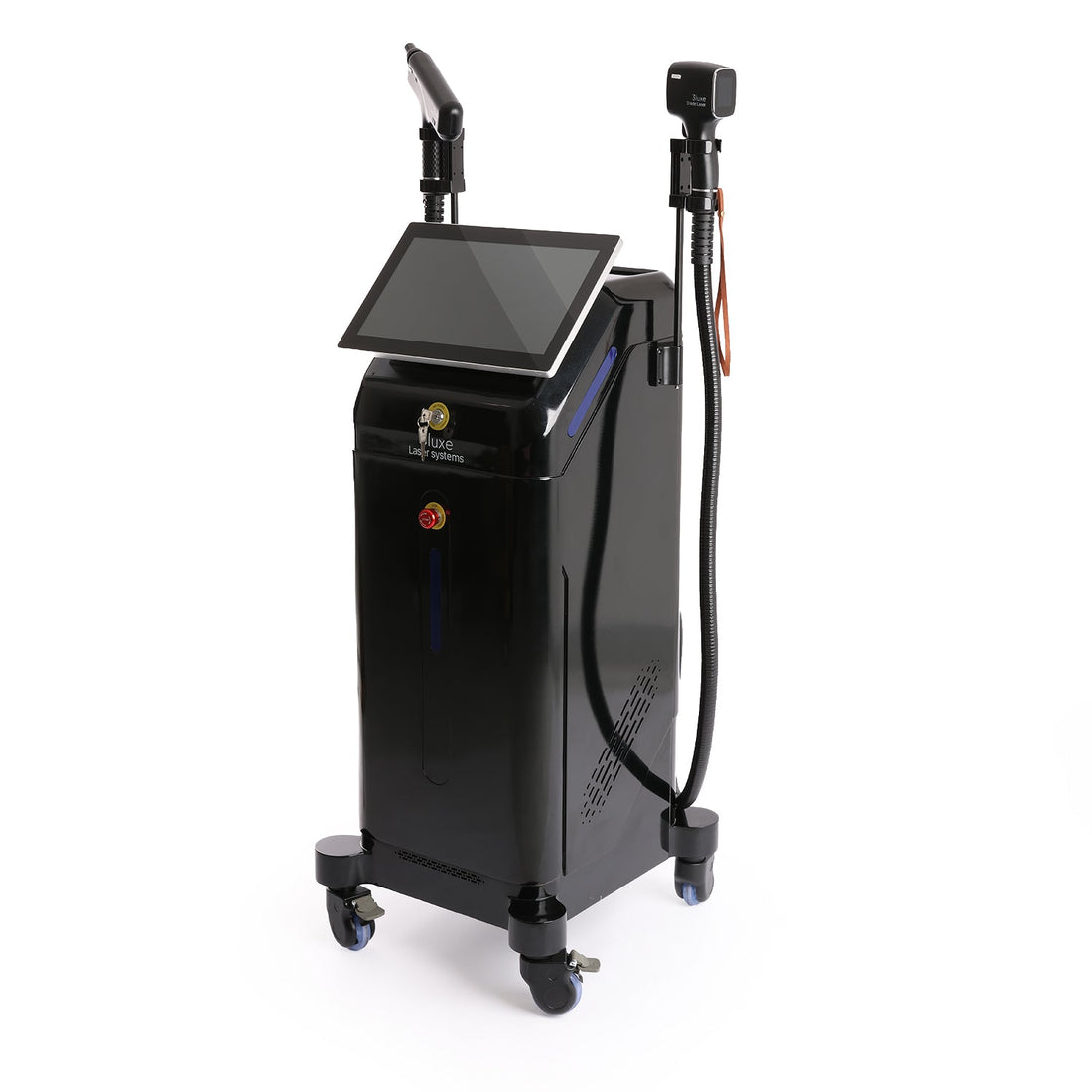

Discover our Professional Diode Laser Hair Removal & Q-Switch Tattoo Removal System, featuring a 12-bar diode configuration, US Coherent laser bars, four magnetic spot sizes, multi-stage cooling and UK-based technical support.
